- Professional DSP amplifier for live and mobile application
- Fully integrated professional speaker processing with FIR drive technology
- Market-leading acoustic performance and rock solid reliability
- Intuitive, simplified set-up, control and operation in SONICUE sound system software with firmware 2.0

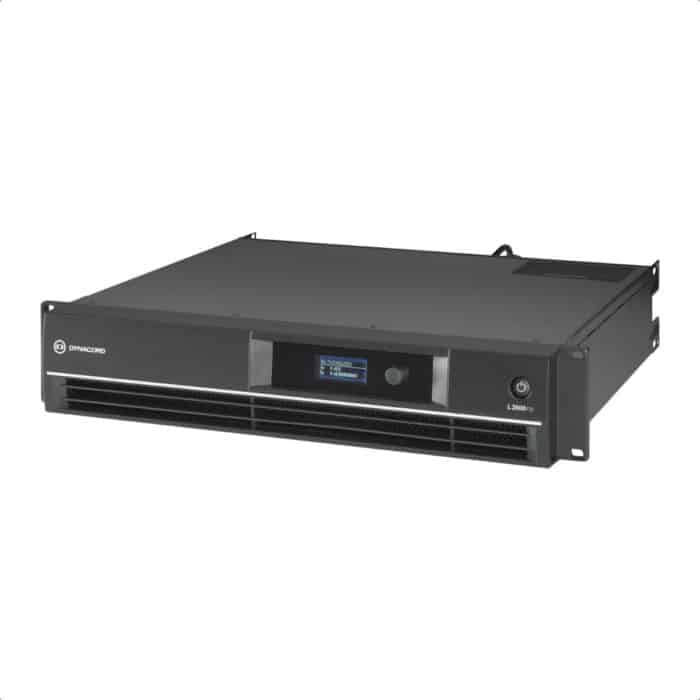

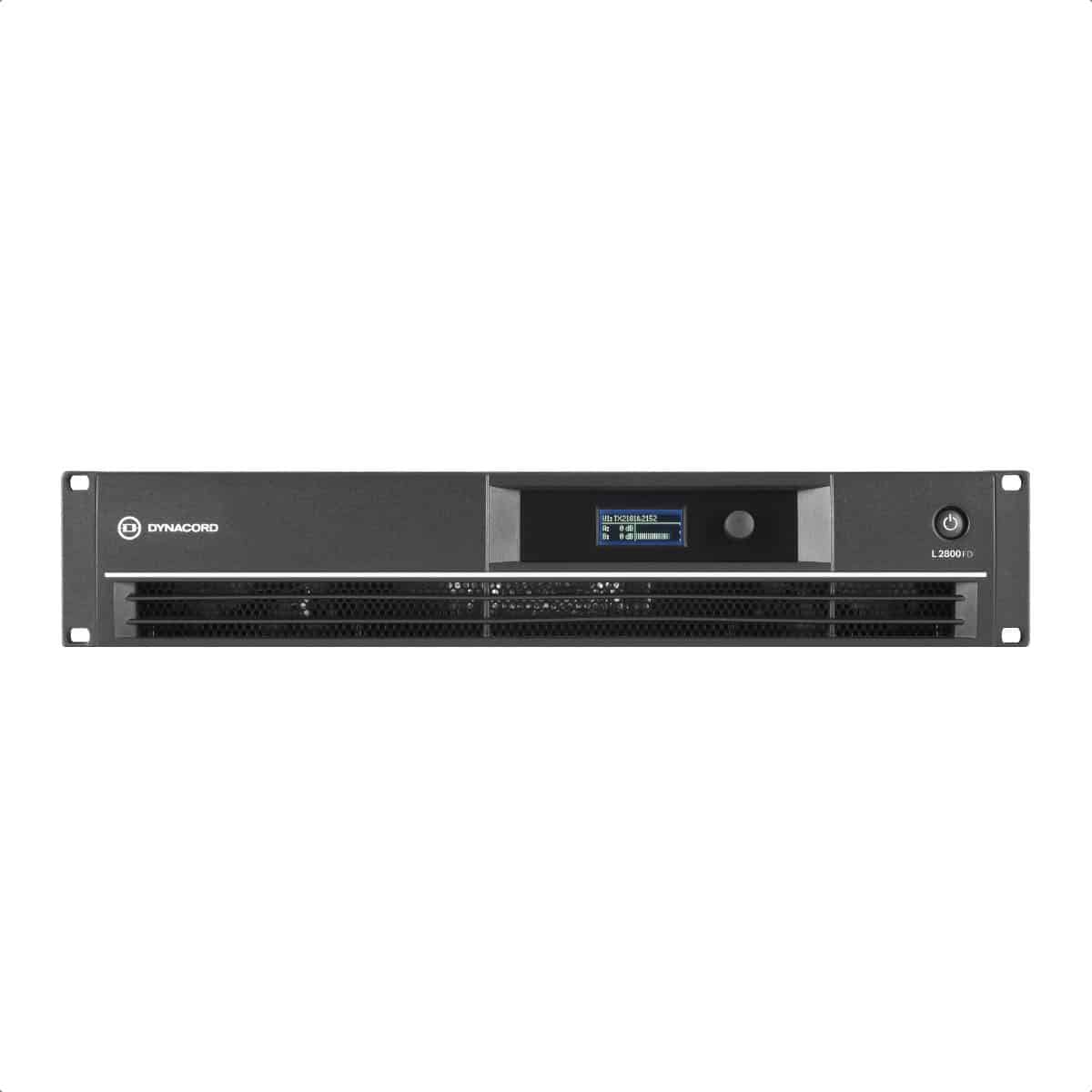

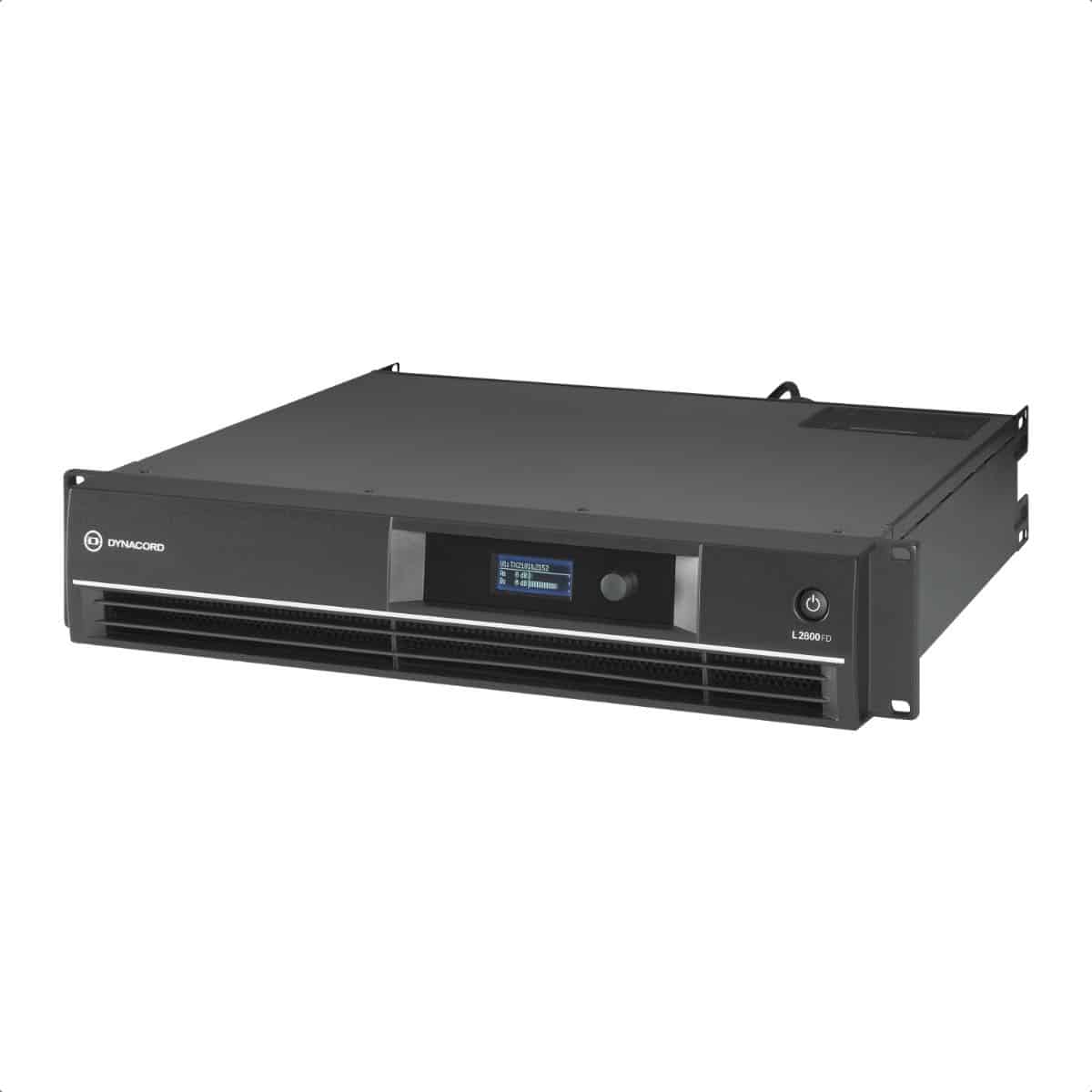

Dynacord L Series are professional dual channel audio amplifiers for live and mobile applications. Integrated digital signal procesing provides access to professional speaker processing with FIR Drive technology. L Series amplifiers utilize Class A/B resp. Class H topologies, which provide market leading acoustic performance and reliability. The connectivity is optimized for the needs of mobile applications. A front panel LC display allows local control and supervision of the amplifier. An intuitive system control software allows fast system setup, flexible system control and comprehensive supervision.
Load Impedance |
2 Ω |
2.7 Ω |
4 Ω |
8 Ω |
Maximum Output Power, Single Channel |
2300 W |
2000 W |
1400 W |
700 W |
Maximum Output Power, Dual Channel |
2200 W |
1800 W |
1300 W |
650 W |
Maximum Output Power, Bridged |
– |
– |
4400 W |
2600 W |
